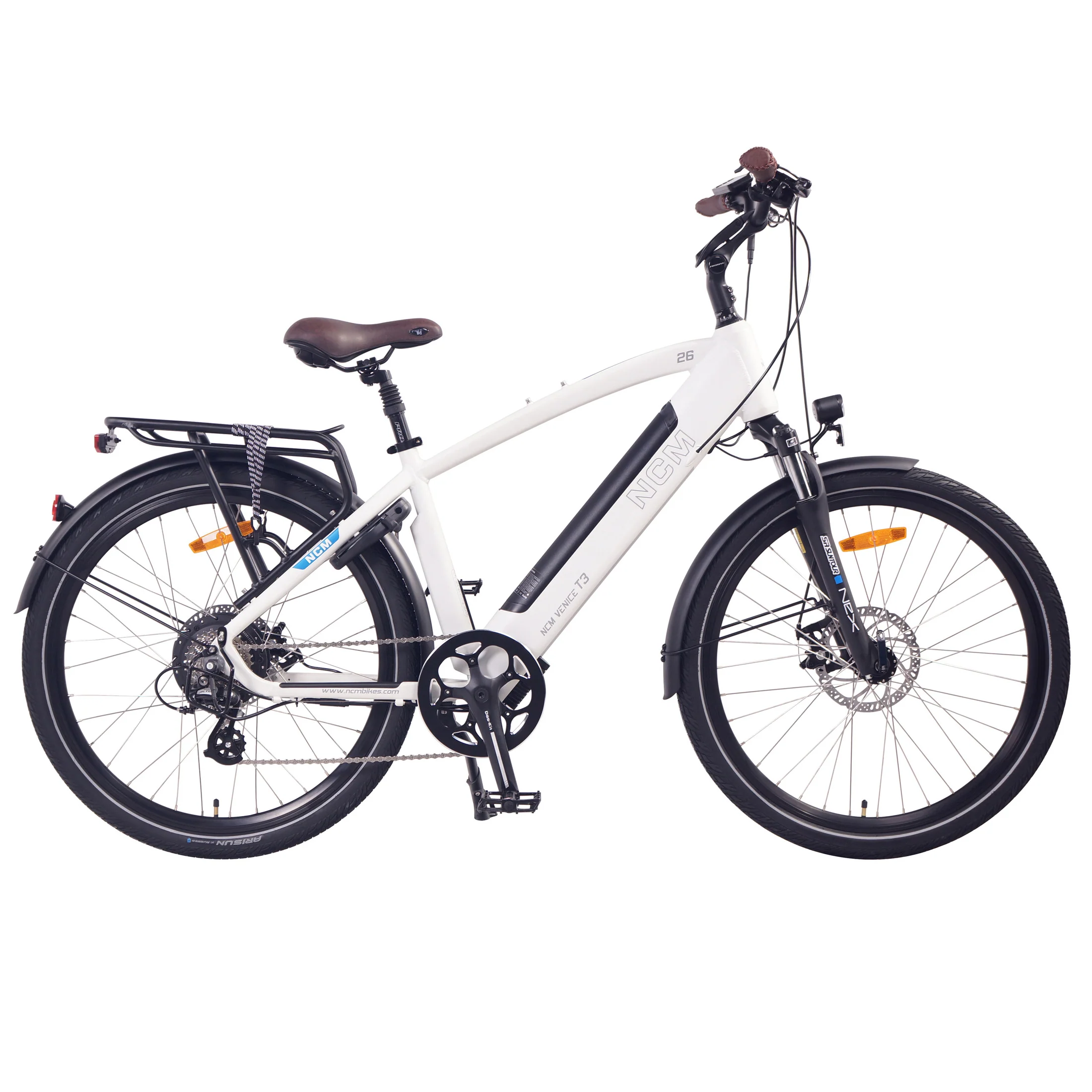

Compared to the old NCM Venice, the new NCM T3 is built with a reinforced integrated battery. An exceptional entry point into the world of e-trekking bikes, the NCM T3 offers the chance to experience the smoothest city and countryside rides on an accessible step-through e-bike engineered with high-quality components.

BIKE COMPONENTS

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls are easily accessible
• Supplied with 48V to deliver a high-output power
• Up to 500W Peak Motor Power
• Over 576Wh capacity for a longer distance
• Up to 110 km Battery Range (depending on the conditions)
• Integrated battery for high performance and better aesthetic
• Easily removable battery so you can charge it anywhere
• Certified Road Legal E-Bike

BIKE COMPONENTS

Frame: Alu. 6061, 26"*16.9 inches / Alu. 6061, 28"*18.1 inches

Suspension Fork: Suntour, NEX 26 / 28

Brake: Hydraulic Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Arisun, H-5213E

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R:SL-M315-7R, 7 Speed

Derailleur: Shimano, Altus RD-M310

Chain: KMC, Z51



ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

Front Light: DH002, 48V, 40 Lux

Rear Light: DR009, AAA*2



WEIGHT

Net Weight (with battery): 27.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg
