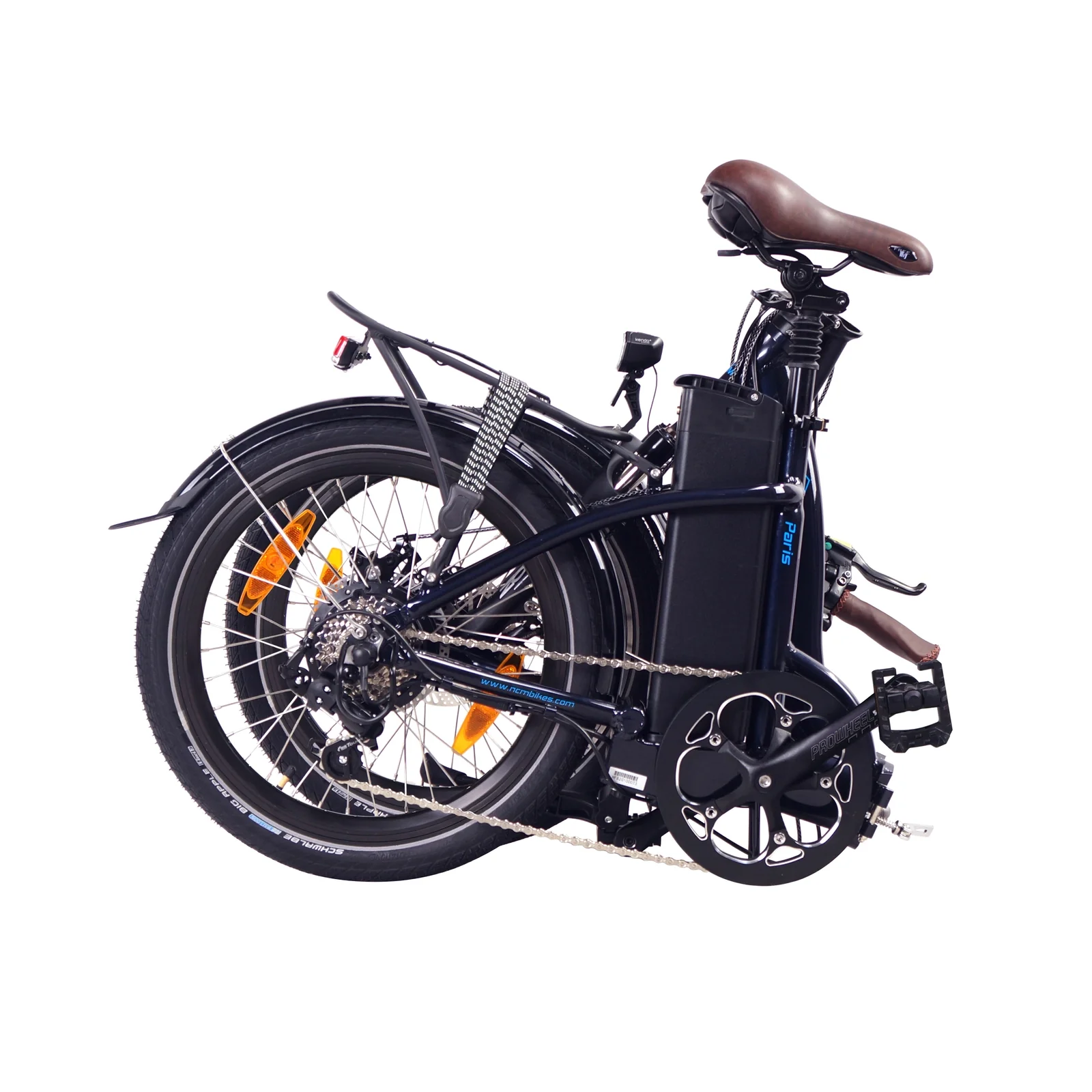

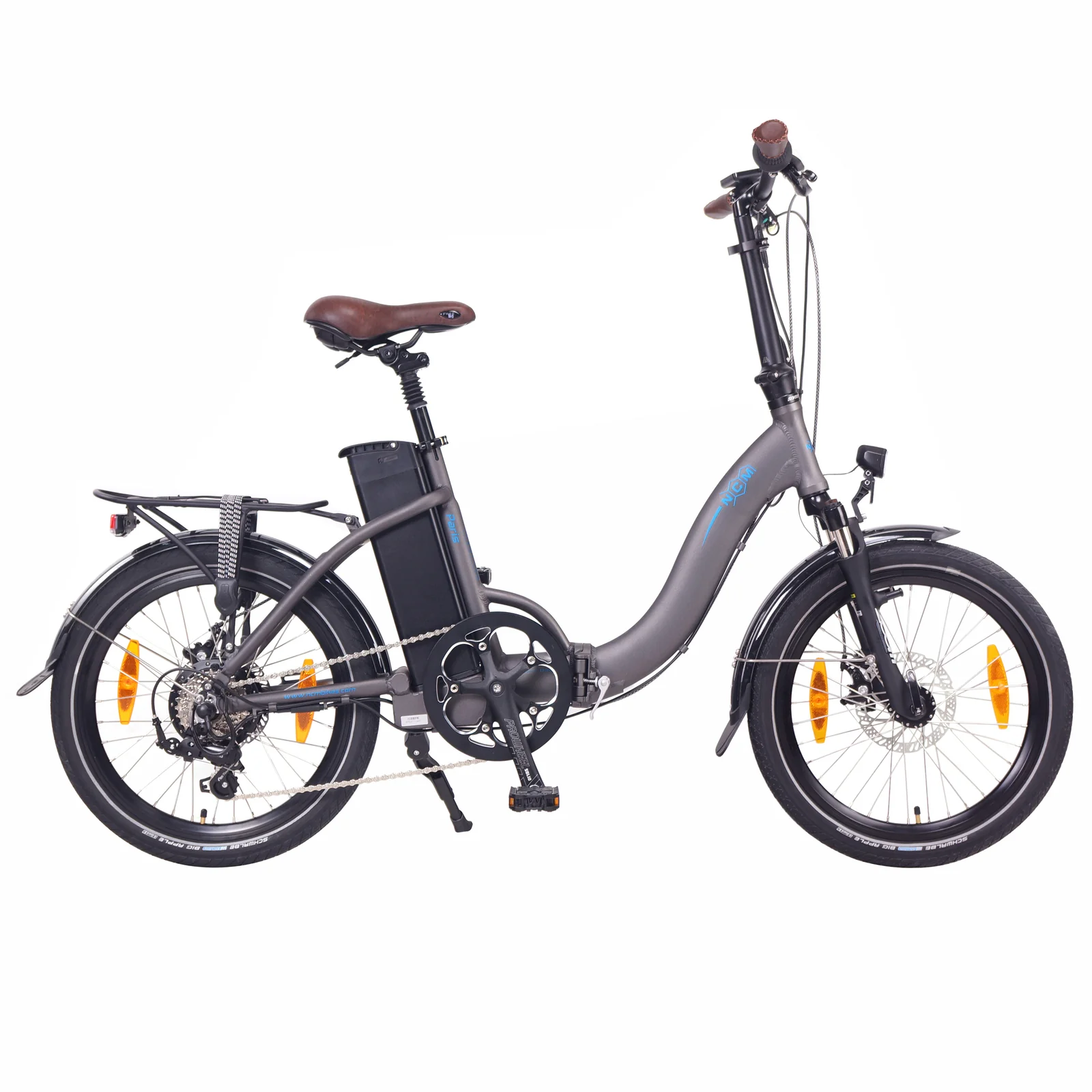

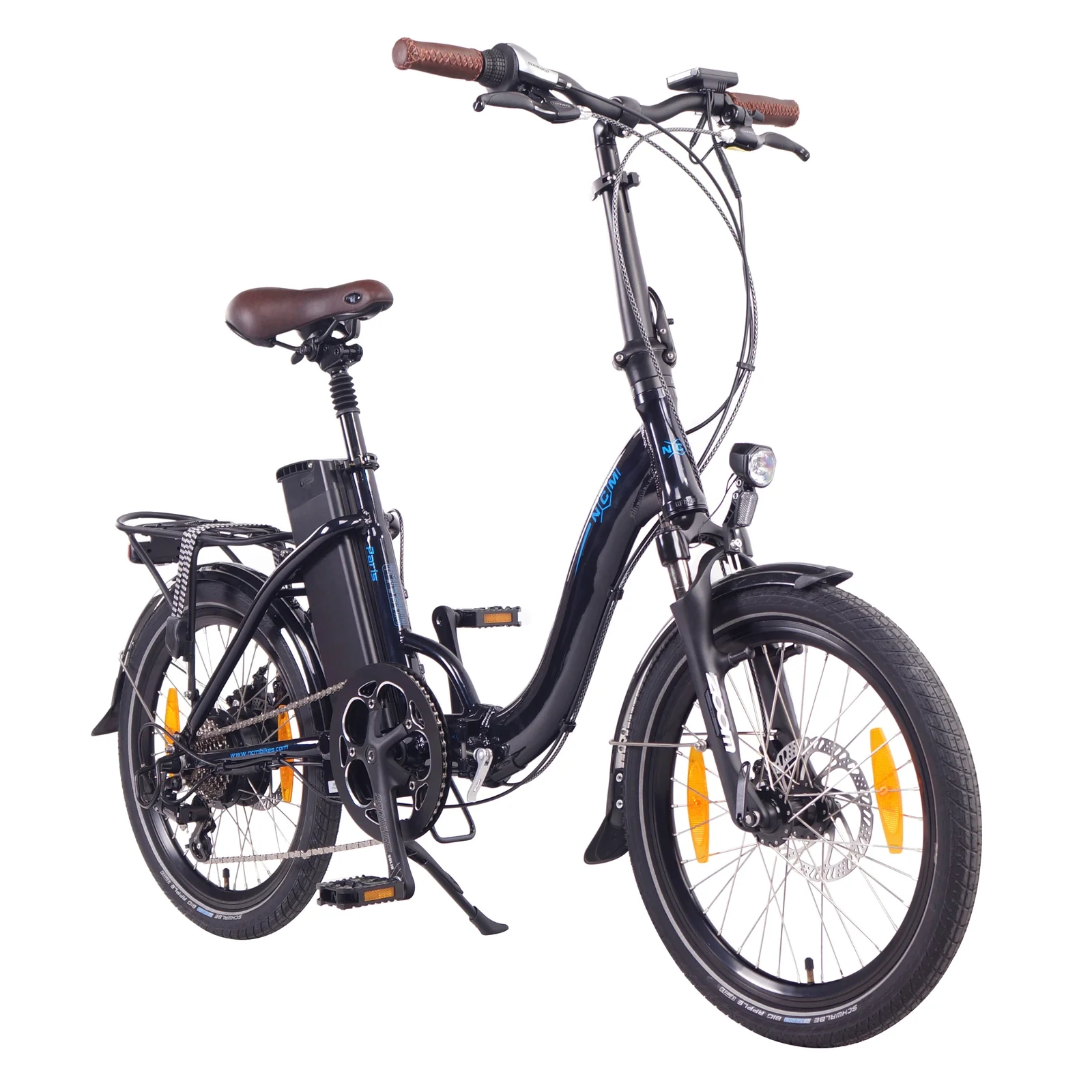

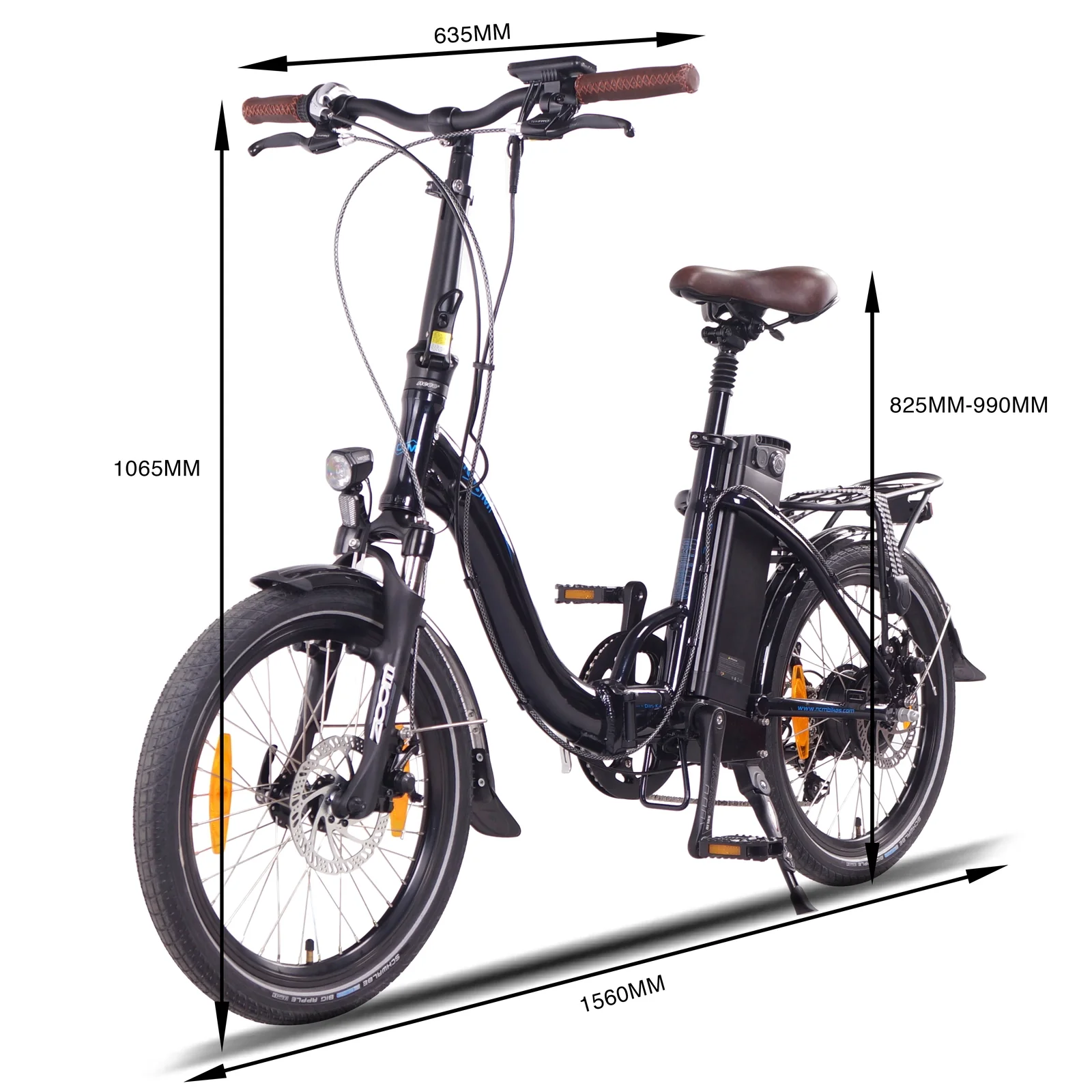

The NCM Paris is NCMs, curvy foldable bike series. With a lower tube design and a large rear-mounted battery for extra range. NCM foldable Bikes are designed to be compact and lightweight, whilst also providing high-quality strength and reliability.



BIKE COMPONENTS

Frame: Alu. 6061, 20"*380MM

Suspension Fork: Zoom, CH190

Brake: F/R: Tektro Disc Brakes, MD-280

Freewheel: 7-speed, 14-28T

Tire: Schwalbe, Big Apple, 20"*2.0

Saddle: Selle Royal, FREEWAY

Crank: Prowheel, SOLID-252AA9, 52T

Shifter: Shimano, Altus, R:SL-M315-8R, 8 Speed

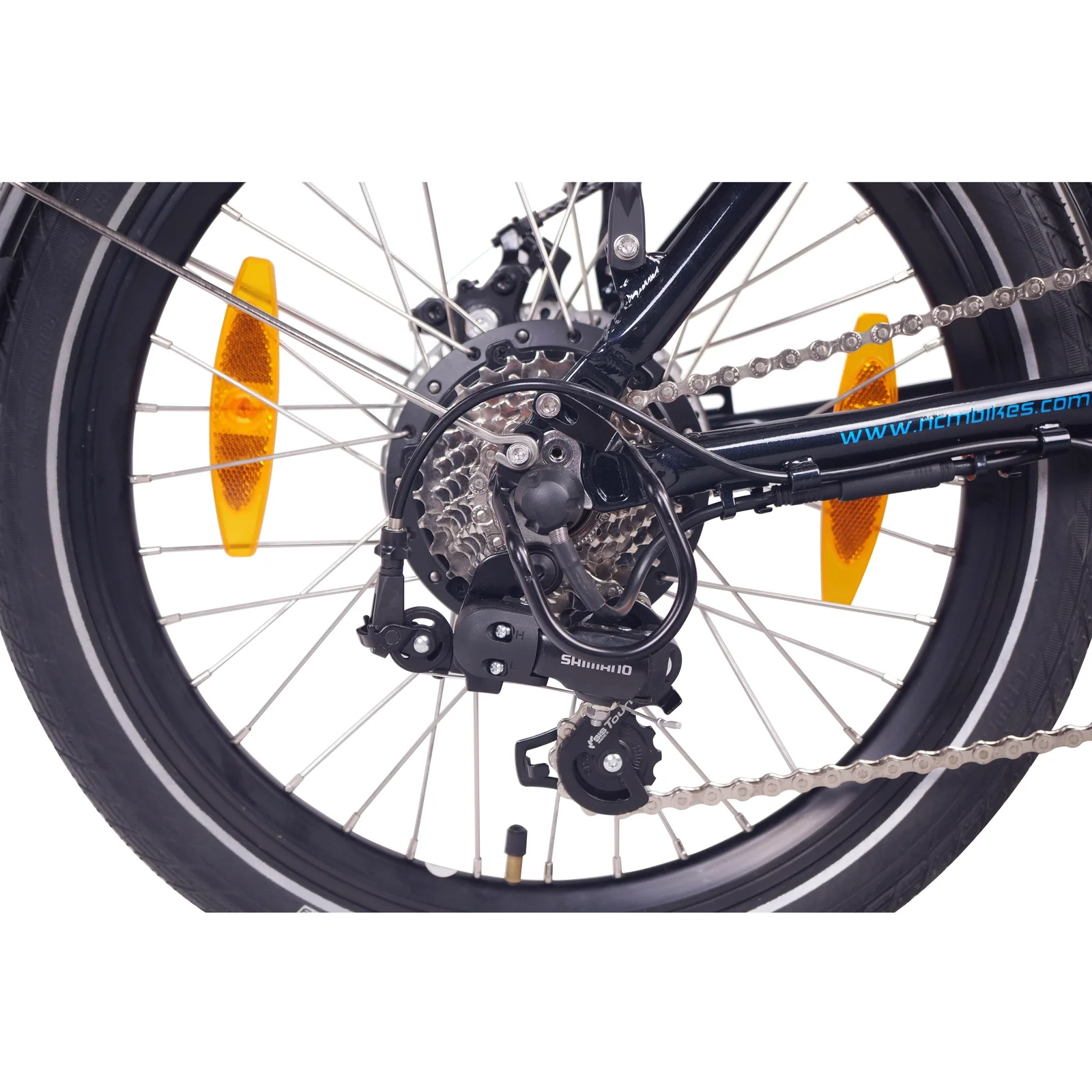

Derailleur: Shimano, Tourney 7-speed, ARDFT35D



ELECTRIC COMPONENTS

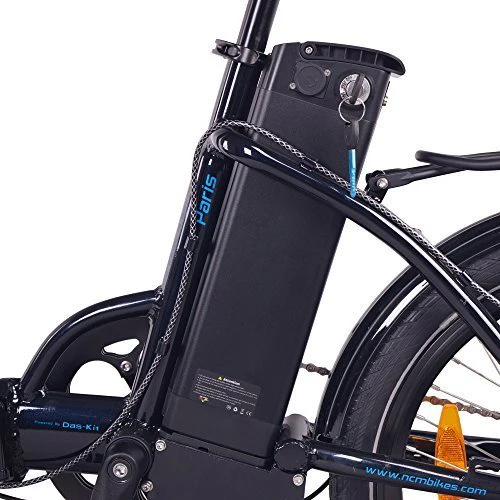

Battery: B1U-3615H, 36V 15Ah, 540W, with USB port

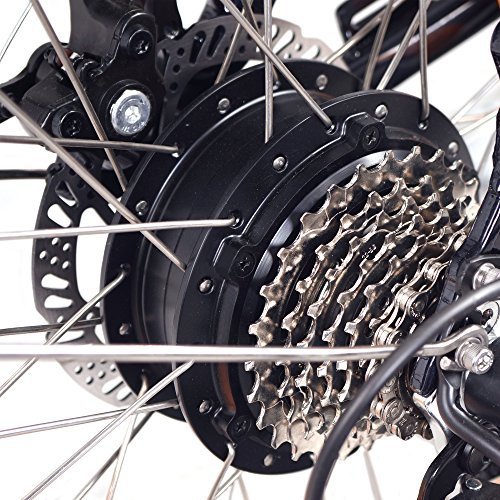

Motor: Das-Kit, R2S Rear-drive motor, 36V 250W, 25KM/H

Controller: Das-Kit, CT4, 36V 14A

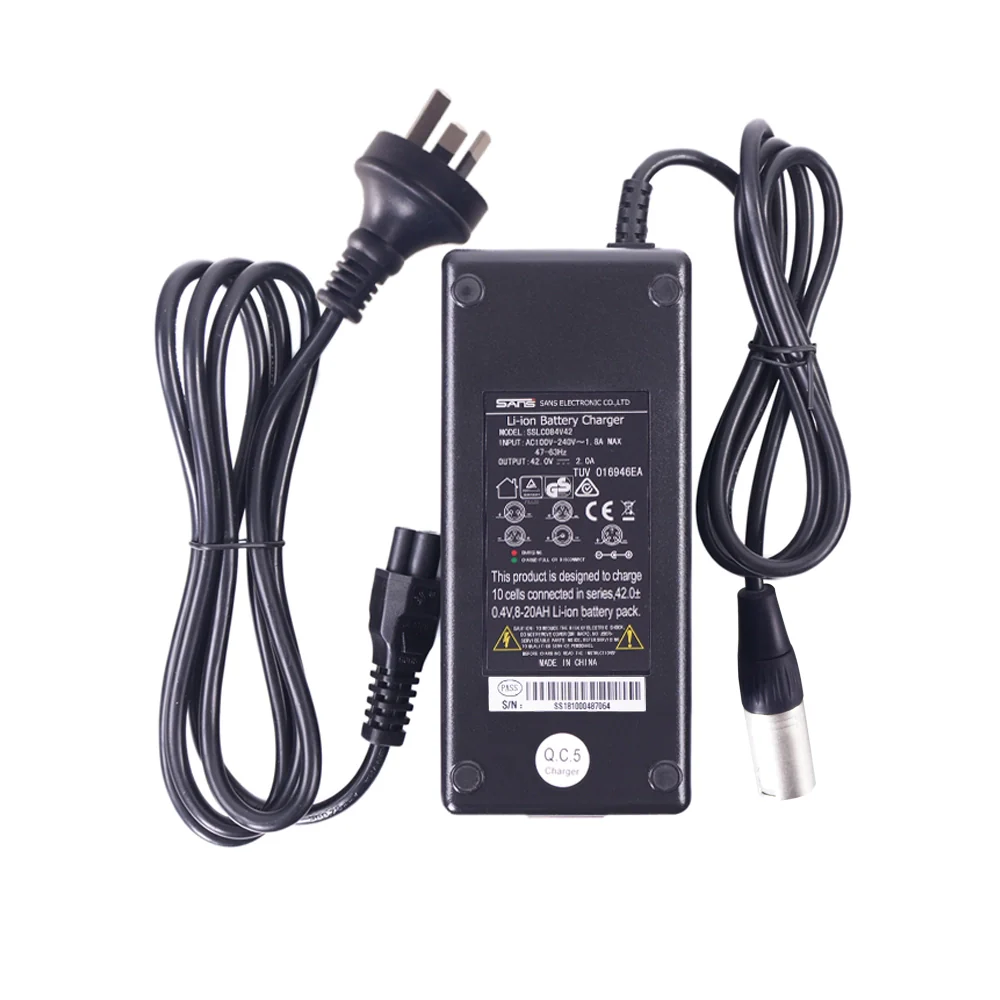

Charger: M362AU 36V 2A with XLR-plug

Display: Das-Kit, L6, LCD, 6 levels

Front Light: Spanninga, KENDO, 36V, 20Lux

Rear Light: Spanninga, SOLO



Weight

Net Weight (with battery): 24.0kg

Battery Weight: 4.1kg

Max Load (driver+bike): 125.0kg
