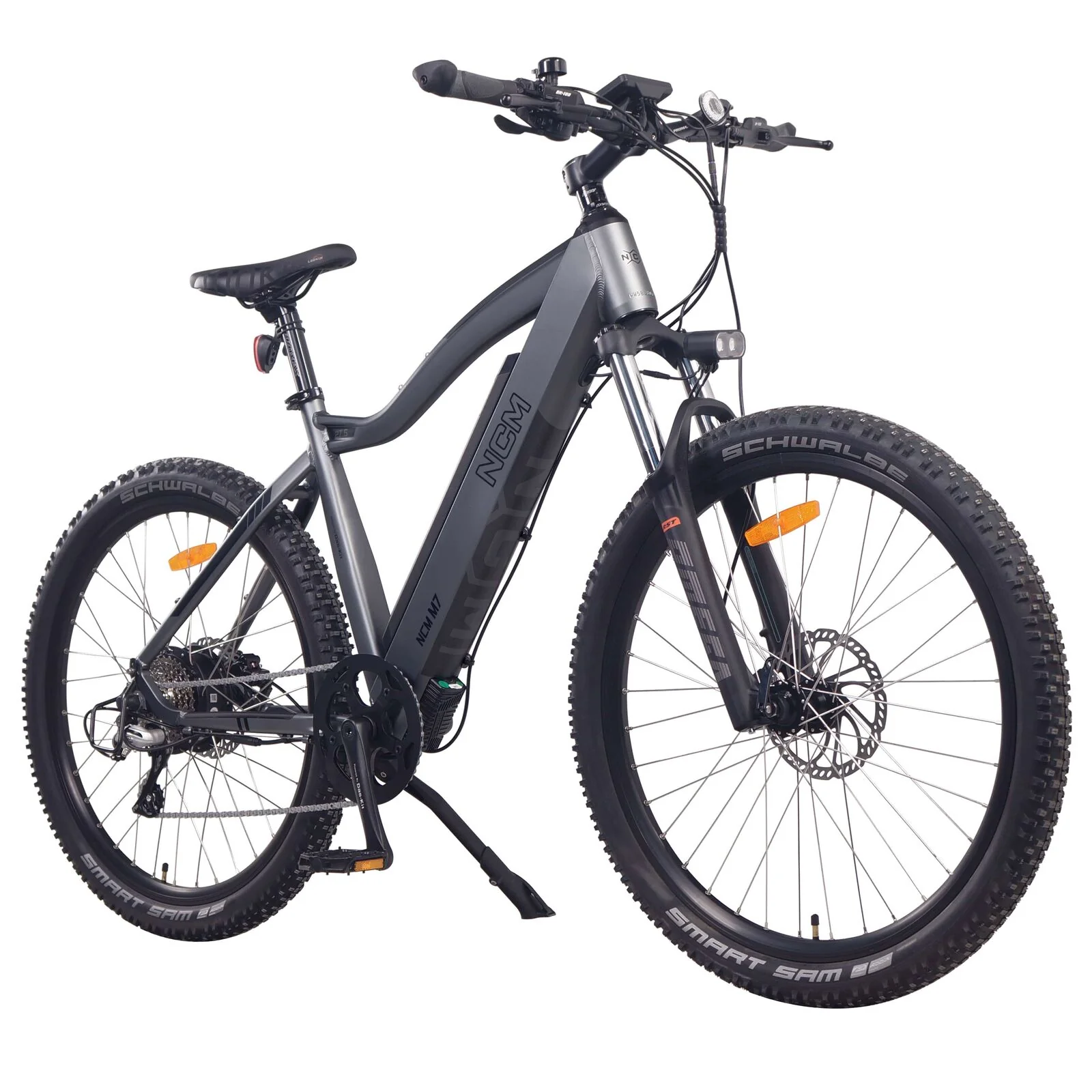

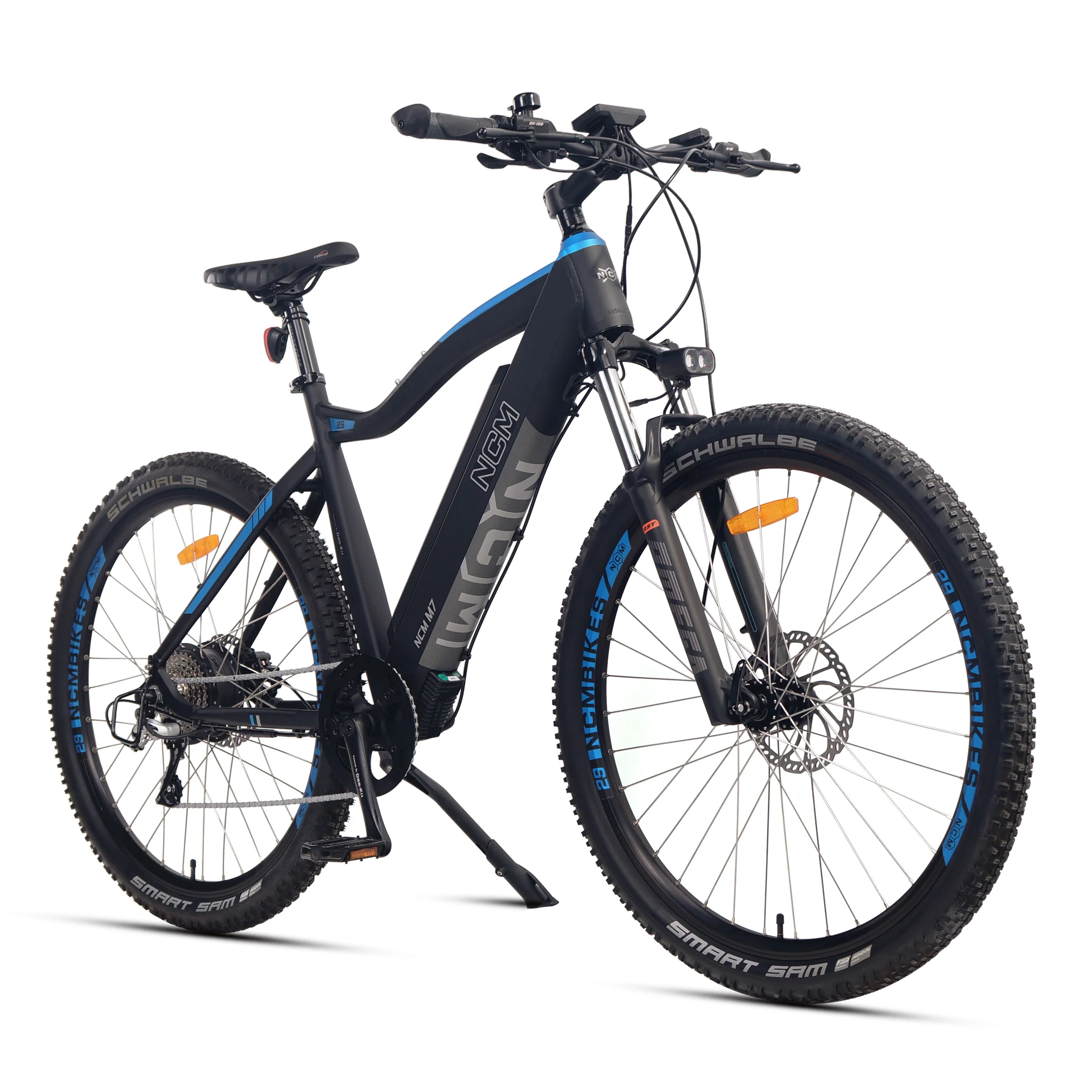

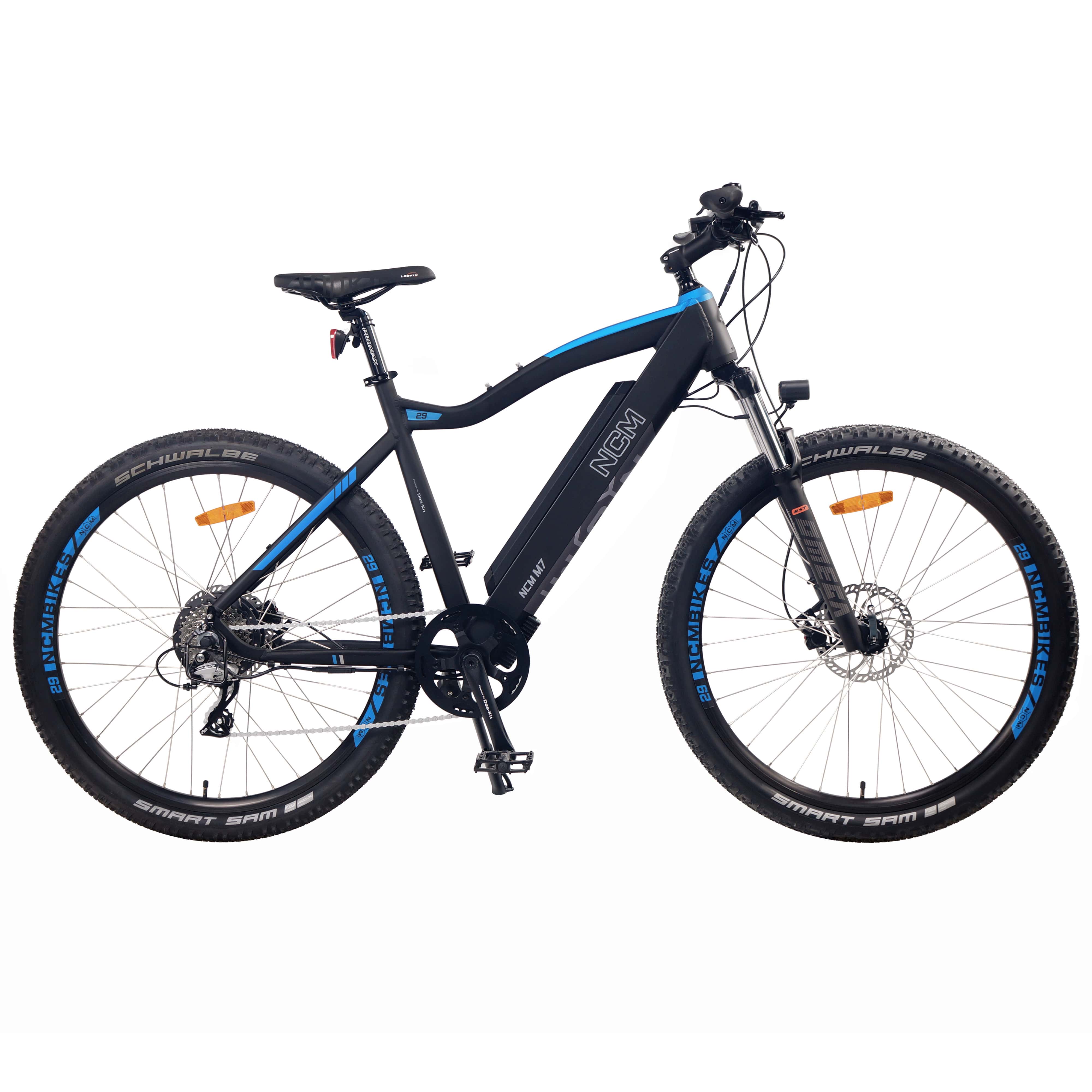

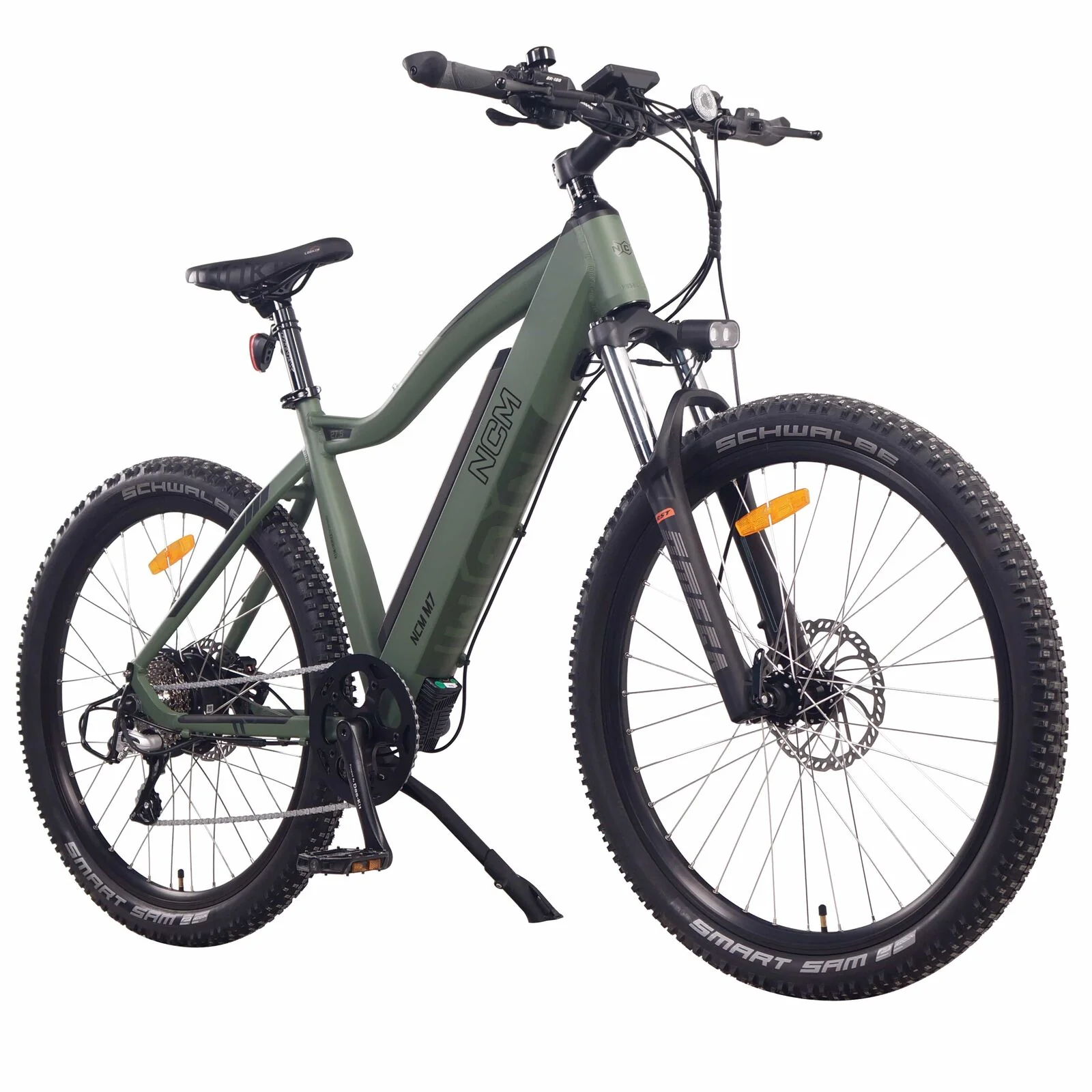

An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their e-bike can handle whatever they throw at it.

KEY FEATURES

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls are easily accessible
• Supplied with 48V to deliver a high-output power
• Built-in GPS (Battery Tag Technology)
• Over 912Wh capacity for a longer distance
• Up to 180 km Battery Range (depending on the conditions)
• Up to 500W Peak Motor Power
• Battery integrated into the frame for better aesthetics
• Easily removable battery so you can charge it anywhere
• A built-in USB port with 5V to charge mobile phones



BIKE COMPONENTS

Frame: Alu. 6061, 27.5"*480MM

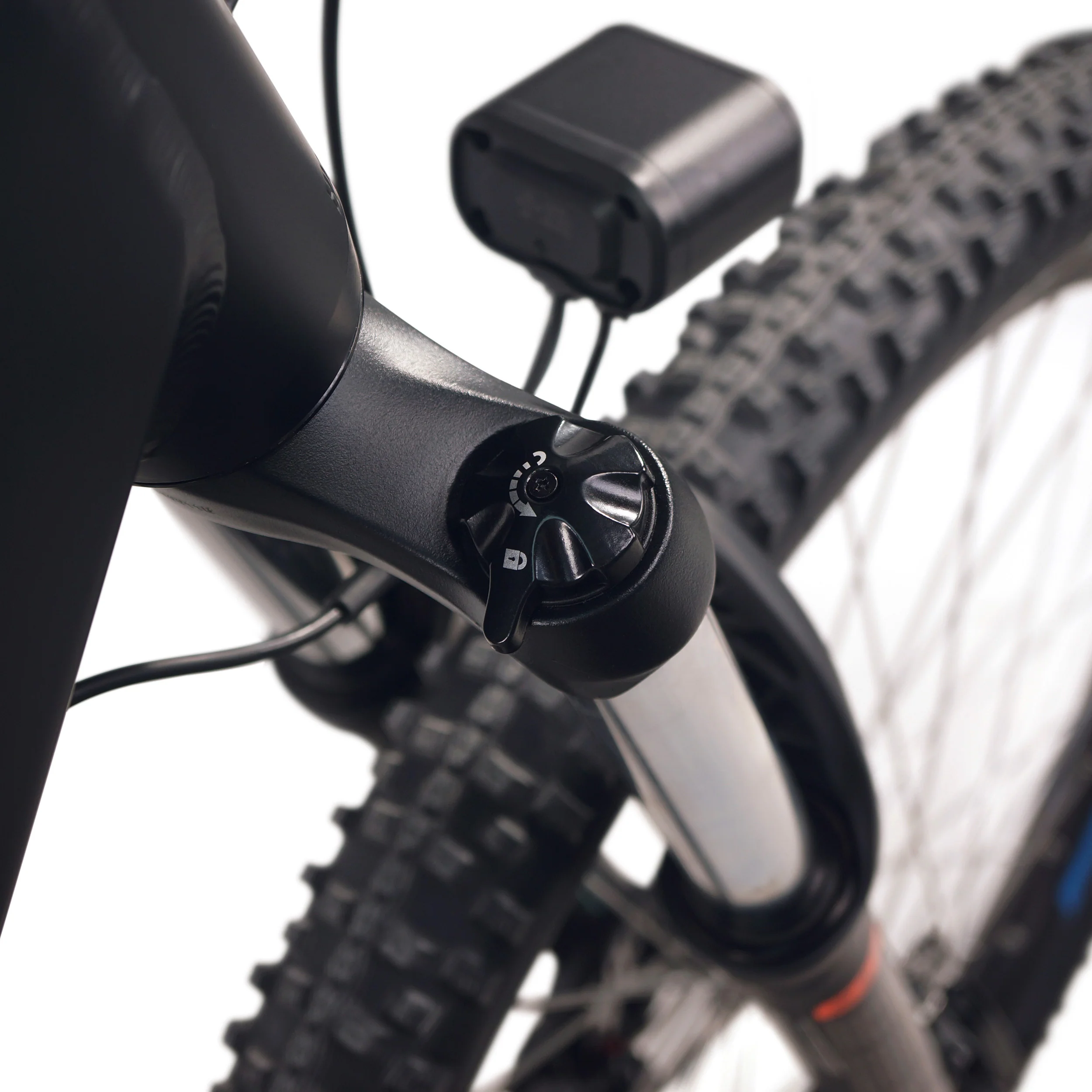

Suspension Fork: RST, OMEGA-TNL-27.5, with Hydraulic Lock System

Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor

Freewheel: LY, 8 Speed, 11-32T, Silver

Tire:  Schwalbe, Smart Sam 27.5×2.35

Saddle: Selle Royal, Lookin-A200UR, Black

Stem: Promax, MA-579

Crank: Das-Kit, 52T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver



ELECTRIC COMPONENTS

Battery: Das-Kit, i7-4819, 48V19AH, 912WH with TAG Technology

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25kM/H

Controller: Das-Kit, T7+, 48V 18A

Throttle: Das-KIt, T6

Charger: Das Kit, 48V 3A

Display: Das-Kit, C8, with USB

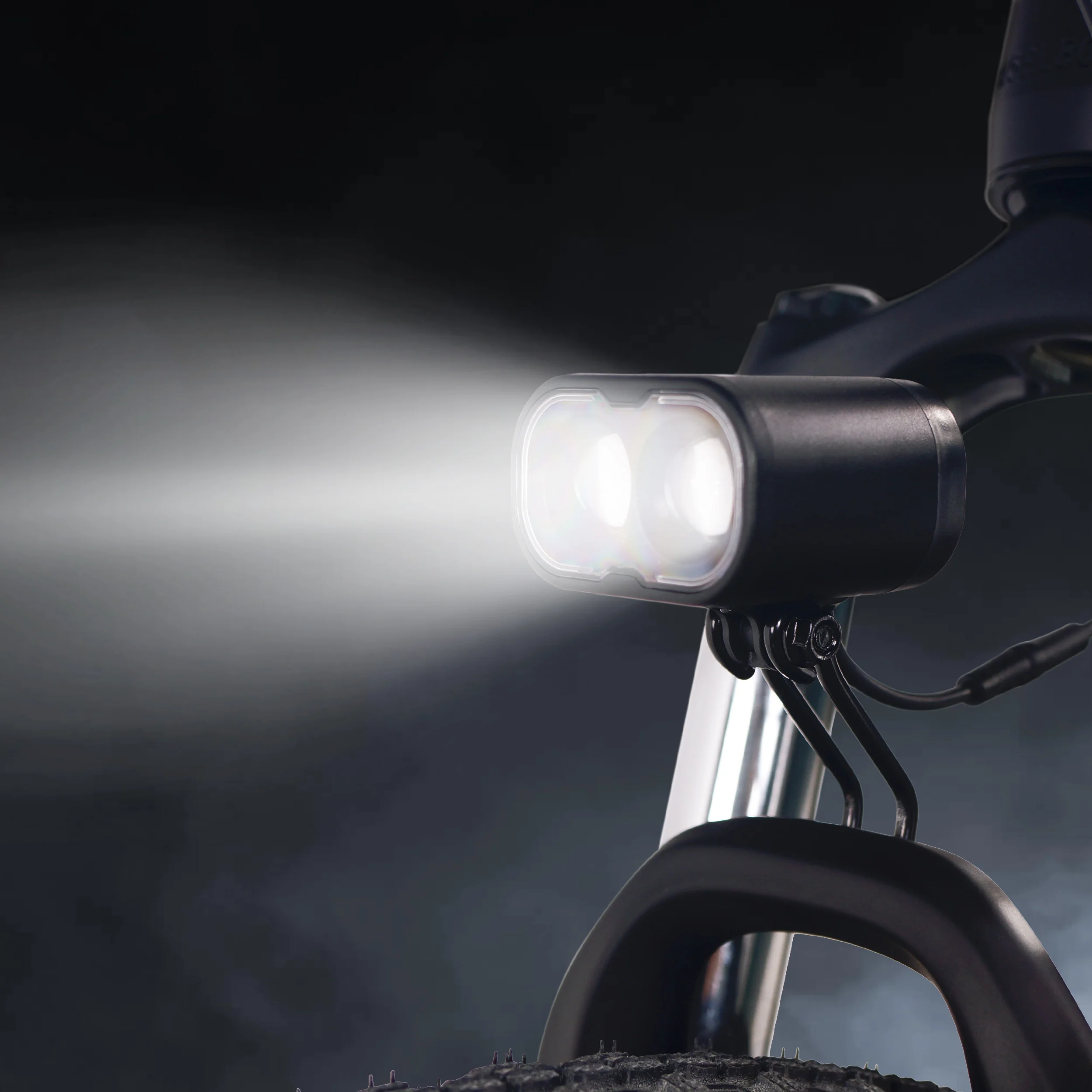

Front Light: LED, 48V, 70Lux

Rear Light: LED, 3V, 2xCR2032



WEIGHT

NCM M7 27.5":

Weight (without battery): 22.5KG

Battery Weight: 4.8KG

Max Load (rider+bike): 125KG
